Reliable Panel PC solution with True Flat PCAP Touch

by donpedro

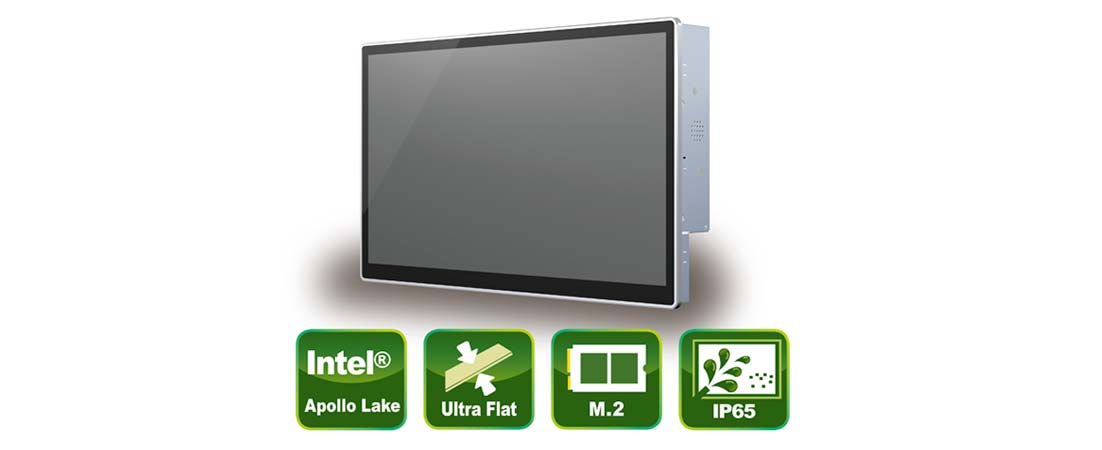

With the P210-10AI Panel PC, ICP Germany completes the fanless P-series with a 21.5″ variant equipped with True Flat PCAP touch technology. The P210-10AI offers a 21.5″ TFT-LC display with Full HD resolution (1920×1080) and 16.7 million colors at a color depth of 8 bit. The display delivers a brightness of 250 cd/m2 and a viewing angle stability of 170°/170°. The front offers the proven IP65 protection and the airbonded 10-point True-Flat Projected Capacitve Touch Screen provides a crystal clear image. Anti-glare, anti-reflection and anti-bacterial coatings are optionally available. As with the P156-10AI, the cornerstone of the P210-10AI is the PD10-AI thin mini-ITX board, which is equipped with a dual core Intel® Apollo Lake-M CeleronTM N3350 with a maximum turbo frequency of 2.4 GHz. A quad-core PentiumTM N4200 with a maximum 2.5GHz is also available as an option. In terms of memory, the P210-10AI can be equipped with a maximum of 8GB DDR3L with 1867MHz clock frequency. On the I/O Shield, the motherboard provides two RJ45 Gigabit Ethernet ports with Intel® I211-AT network chips, one HDMI and one display port each for connecting additional displays and four USB3.0 interfaces. Furthermore two RS-232 interfaces and an eight bit GPIO slot are provided. Two 2 Watt loudspeakers are already integrated in the housing. Further audio interfaces such as MIC-IN or LINI-OUT are connected to the IO Shield. A 2.5″ mounting frame with SATA connection is available for storage media. The P210-10AI can be equipped with add-on cards via the M.2 2230 E Key and the M.2 2280 B Key with PCIe and USB signal.

The P210-10AI operates reliably in a voltage range from 8 to 24 Volt DC and can be operated in a temperature range from -10 °C to 50 °C. The compact size of 509x308x68 mm and the possibility to operate the on/off switch remotely allow easy panel mounting. Suitable for the P156-10AI, ICP Germany supplies industrial storage media and main memory.

Industrial 21.5″ Panel PC with True-Flat PCAP Touch Screen

• 21.5″ Full-HD TFT-LCD
• With Intel® Apollo Lake-M processors
• Projected Capacitive True-Flat 10 point touch screen
• IP65 Aluminium front panel
• Fanless Design

• Display systems
• Info terminals
• Self-Service Terminal
• Automation Controller
• Embedded Device Dashboard
• Input device for production lines

ICP Deutschland
