New 600W fan-less AC-DC power supply for medical (BF) and ITE/industrial applications

by donpedro

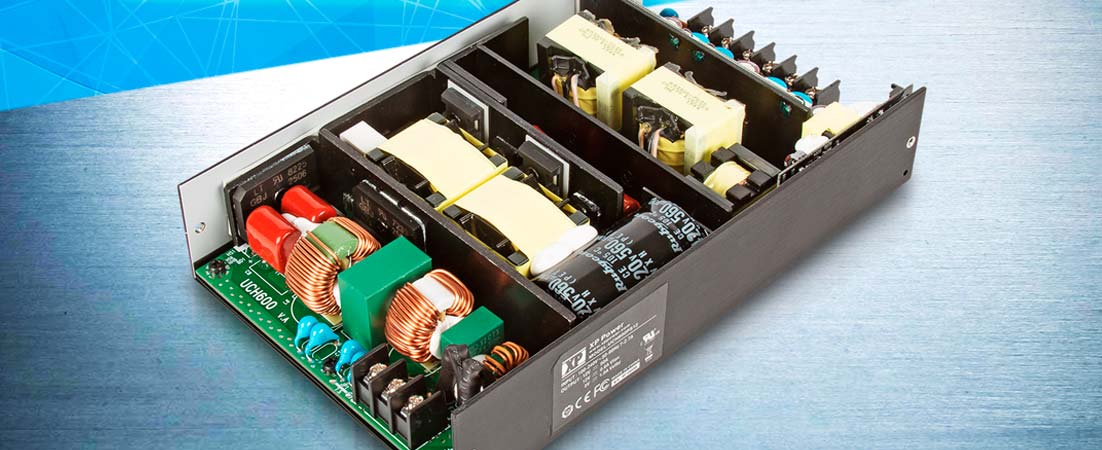

XP Power has released a new series of convection cooled, 600W AC-DC power supplies. The ultra-compact power supplies deliver full load power under a wide range of conditions without additional cooling.

The UCH600 series is ideal for use where no forced air is available, or fan noise or the ingress of dirt is undesirable. This includes medical devices, as well as those requiring BF patient protection, that need to operate silently, also ITE or industrial electronics applications in environments where dirt ingress would be exacerbated by forced air cooling or where audible noise & fan reliability issues mean forced air cooling is impractical.

The power supplies meet EN55011/32 Class B for both conducted and radiated emissions with significant margin, making them a low risk for integration and system approvals for the end-use equipment. Class C harmonics compliance makes the ensure the UCH600 ideal for lighting and display applications.

The high levels of efficiency (up to 95%) minimise waste heat and ensure that power supplies in the UCH600 series can deliver their full rated power (600W) at ambient temperatures up to +50ºC, even at low line input. At 70ºC, a full 300W of power is available without any form of forced air cooling being required. For equipment designs where some forced air cooling is employed, a 12V/0.6A auxiliary fan supply is available.

The UCH600 series carries worldwide safety approvals for ITE/industrial and healthcare applications including IEC60950-1, IEC/EN/UL62368-1 and IEC/EN60601-1 3rd Edition.

The compact and low-profile power supply measures just 8.0” × 5.0” × 1.57”, giving an impressive power density of 9.5W/in3. Its U-channel construction and low profile allow for easy and flexible installation into a wide range of applications.

The UCH600 series is available from Digi-Key, Farnell, Mouser, RS Components, approved regional distributors, or direct from XP Power with a 3-year warranty.

XP Power
