Maxim’s Secure Microcontroller Delivers Advanced Cryptography, Secure Key Storage and Tamper Detection in a 50 Percent Smaller Package

by donpedro

Manufacturers of security-sensitive industrial, consumer, computing and internet of things (IoT) devices now have a fast, efficient way to build in secure cryptographic operations, integrate key storage and enable active tamper detection with the MAX32558. As the newest member of the DeepCover® family of secure microcontrollers from Maxim Integrated Products, Inc. the MAX32558 offers these robust security features while enabling designers to save up to 50 percent of printed circuit board (PCB) space versus the closest competitor.

As electronic products become smaller and increasingly connected, there is a growing threat to sensitive information and privacy, requiring manufacturers to keep security top of mind when designing their devices. While designers should prevent security breaches at the device level, they often struggle with the tradeoff of enhanced security with minimized board space, as well as with design complexity and meeting time to market goals.

The MAX32558 DeepCover Arm® Cortex®-M3 flash-based secure microcontroller solves these challenges by delivering strong security in a small footprint while simplifying design integration and speeding time to market. It integrates several security features into a small package, including secure key storage, a secure bootloader, active tamper detection and secure cryptographic engines. It also supports multiple communications channels such as USB, serial peripheral interface (SPI), universal asynchronous receiver-transmitter (UART) and I2C, making it ideal for a wide range of applications. Maxim’s long-standing reputation and experience in payment terminal certifications as well as its established support and technology can help streamline the certification process for customers, reducing the process up to 6 months’ time (rather than the typical 12 to 18 months).

Key Advantages

  • Robust security:
    • Shields sensitive data by providing the most secure key storage available
    • Offers secure bootloader, active tamper detection and secure cryptographic engines
    • Compliant with Federal Information Processing Standard (FIPS) 140-2 L3&4 certification
  • Highly integrated solution in a small footprint:

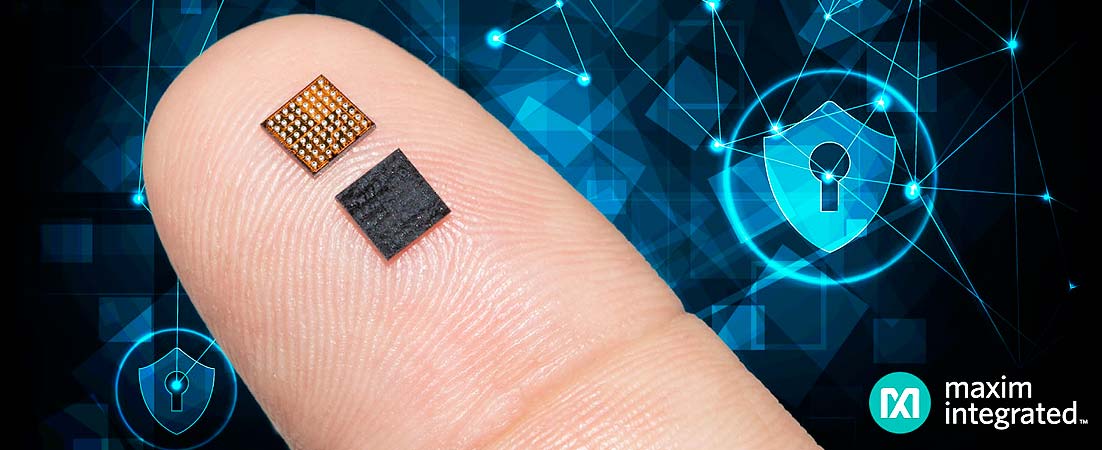

    • Compared to a secure authenticator, the MAX32558 provides 30x more general-purpose input/output (GPIO) in the same PCB footprint (4.34mm x 4.34mm) wafer-level package (WLP). The closest competitor, meanwhile, offers a device with similar features but in a much larger package (8mm x 9mm ball-grid array 121 (BGA121))
    • Reduces footprint by embedding a number of security features to address point-of-sale Payment Card Industry (PCI) pin transaction security (PTS) requirements, as well as several analog interfaces
    • Provides 512KB of internal flash and 96KB of internal SRAM
  • Easy design integration:
    • Complete software framework including real-time operating system (RTOS) integration and code examples in evaluation kit
    • Code can be easily ported from one device to another as it shares the same API software library as the rest of the product family
    • Pre-certified Europay, Mastercard and Visa (EMV)-L1 stack for smartcard interface provided Includes extensive documentation and code for managing the device lifecycle, such as secure firmware signing and device personalization

Maxim Integrated | www.maximintegrated.com
