Especially for LE Audio applications: The new Bluetooth SoC‘s nRF5340 from Nordic Semiconductor at Rutronik

by donpedro

More powerful, more energy efficient and more memory: with the nRF5340, a wireless SoC with Dual Arm® Cortex®-M33 processor for complex IoT applications, Nordic Semiconductor presents the third generation of dual-core Bluetooth 5.2 SoC‘s. The Nordic portfolio is available at

As an evolution of the nRF51 and nRF52 series, the nRF53 series combines their key features, such as high-speed SPI, Bluetooth 5.2 and tolerance to operating temperatures of up to 105°C, with higher performance, larger memory and lower power consumption. This makes the chip especially suitable for applications in LE audio, professional lighting, industrial, advanced wearables, medical, smart home, goods tracking and RTLS.

First wireless SoC with flexible Dual Arm Cortex-M33 processors

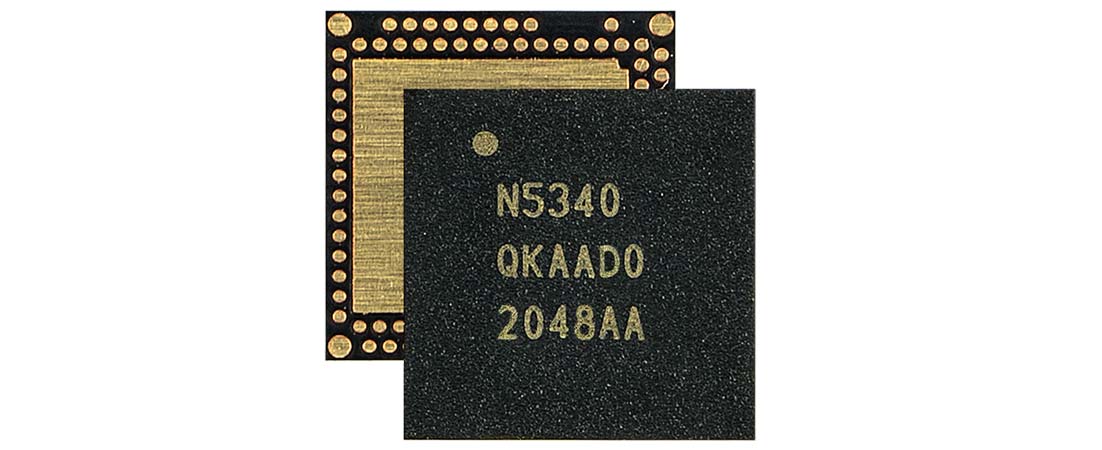

The nRF5340 is currently the first wireless SoC with flexible Dual Arm Cortex-M33 processors. The processor features a 1MB Flash and a 512KB RAM memory. A floating-point unit (FPU), as well as an 8KB 2-way cache and DSP instruction functions, ensure high performance of the chip.

The processors of the nRF5340 chip can be clocked to either 64MHz or 128MHz using voltage and frequency scaling. With a setting of 128MHz, up to 514 CoreMarks can be achieved. Operation at 64MHz, on the other hand, enables an efficient energy consumption of 73 CoreMarks/mA.

A high level of security is provided by the integrated Arm TrustZone®, which differentiates between secure and non-secure regions on a single processor core to isolate the hardware system-wide for trusted software.

The future hears LE Audio

LE Audio technology is the next generation of audio transmission using Bluetooth and represents an important future market within the IoT sector with high growth potential. In this context, LE Audio works with Bluetooth Low Energy transmission technology. The nRF5340 SoC has been specifically designed to meet all the requirements of this LE Audio technology. Audio streaming and improved and more efficient audio transmission are just two of the numerous advantages of this new technology

For more information about Nordic‘s Bluetooth SoC´s nRF5340 and a direct ordering option, please visit our e-commerce platform at
