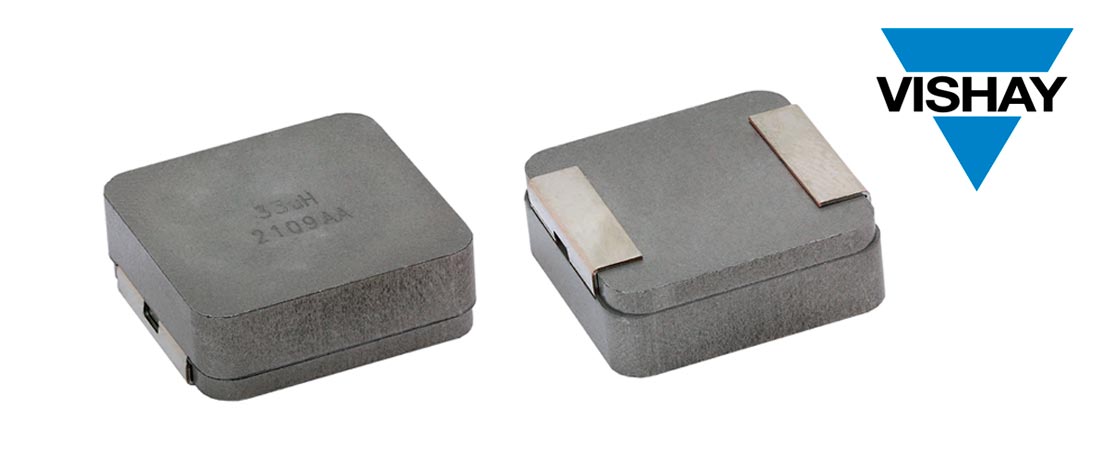

Vishay Intertechnology, Inc. (NYSE: VSH) today introduced a new commercial IHLP® low profile, high current inductor that is the industry’s first composite inductor in the 19 mm by 19 mm by 7 mm 7575 case size. Offering high temperature operation to +155 °C for computer, telecom, and industrial applications, the Vishay Dale IHLP 7575GZ-51 offers up to 30 % lower DCR and up to 35 % higher current ratings than devices in the 6767 case size, at a 50 % lower cost than devices in the 8787 case.
The inductor released today is optimized for energy storage in DC/DC converters up to 2 MHz and high current filtering applications up to the SRF of the inductor. Applications for the device include notebooks, desktops, and servers; low profile, high current power supplies; POL converters; battery-powered devices; and distributed power systems and FPGAs.
Packaged in a 100 % lead (Pb)-free shielded, composite construction that reduces buzz noise to ultra low levels, the IHLP-7575GZ-51 offers high resistance to thermal shock, moisture, and mechanical shock and handles high transient current spikes without saturation. The device is RoHS-compliant, halogen-free, and Vishay Green.
Device Specification Table:
| Case size | 7575 |
| Inductance (µH) | 0.56 to 33 |
| DCR typ. (mΩ) | 1.02 to 25.2 |
| DCR max. (mΩ) | 1.09 to 27.0 |
| Heat rating current (A) | 10.2 to 61(¹) |
| Saturation current (A) | 9.9 to 70(²) / 14.3 to 101(³) |
| SRF (MHz) | 4.4 to 50.0 |
(¹) DC current (A) that will cause an approximate ∆T of 40 °C
(²) DC current (A) that will cause L0 to drop approximately 20 %
(³) DC current (A) that will cause L0 to drop approximately 30 %
Samples and production quantities of the IHLP-7575GZ-51 are available now, with lead times of 10 weeks.
