Small compact Panel PC with True-Flat PCAP Touch

by donpedro

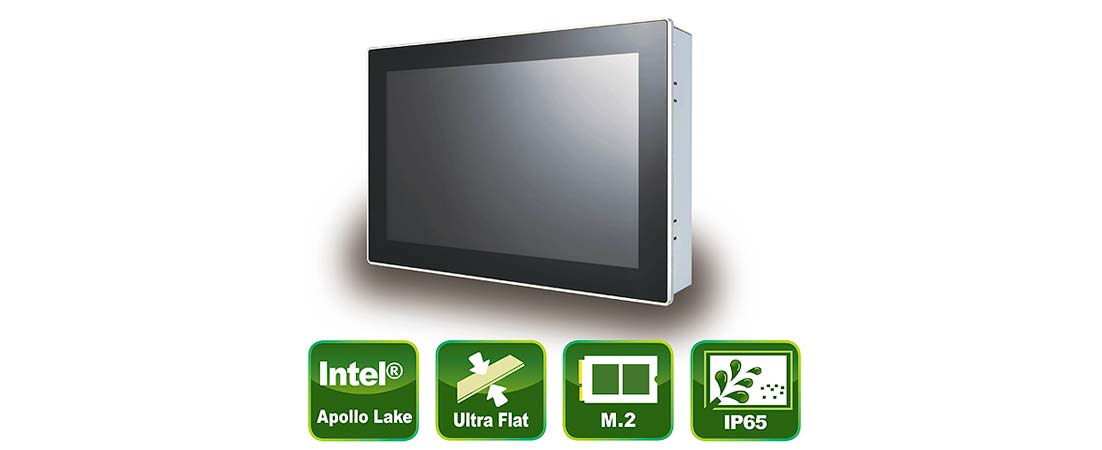

The P100-10AS is the first Panel PC from the P series, which is being launched by ICP Germany. The P100 offers a 10.1″ TFT-LC display with a WXGA (1280×800) resolution and 16.7 million colors at a color depth of 8 bit. The display delivers a brightness of 400 cd/m2 and a viewing angle stability of 170°/170°. The front offers IP65 protection and the airbonded 10-point True-Flat Projected Capacitve Touch Screen provides a crystal clear image. Nevertheless, the simple airbonding process keeps the costs low, but increases the quality of the displayed image enormously. The cornerstone of the P100 is the PD10-AS 3.5″ motherboard, which is equipped with a dual core Intel® Apollo Lake-M CeleronTM N3350 with a maximum turbo frequency of 2.4 GHz. Optionally, other processors such as the quad-core PentiumTM N4200 with a maximum of 2.5GHz are also available. In terms of memory, the P100 can be equipped with a maximum of 8GB DDR3L with a clock frequency of 1867MHz. On the I/O Shield, the motherboard provides two RJ45 Gigabit Ethernet ports with Intel® I210-AT network chips, one VGA and one HDMI each for connecting additional displays and four USB3.0 interfaces. Furthermore, one RS-232 and one RS-232/422/485 interface and an eight bit GPIO slot are provided. SATA storage media can be accommodated in the 2.5″ mounting frame or in the Mini PCIe Full Size Slot. Besides the Mini PCIe slot with attached USB, SATA and PCIe signal, there is also an M.2 2230 with PCIe and USB signal available for expansion with add-on cards. The P100 is designed for a voltage range from 8 to 24 Volt DC and can be operated in a temperature range from -10 °C to 50 °C. The compact size of 178x260x46.5 mm and the low weight of 1.65 kg allow easy panel mounting. Suitable for the P100, ICP Germany supplies industrial storage media and main memory from Cervoz.

(Optional) Further models will be introduced at the booth of ICP Germany at Embedded World.

Specifications

  • 10.1″ WXGA TFT-LCD
  • With Intel® Apollo Lake-M processors
  • Projected Capacitive True-Flat 10 point touch screen
  • IP65 Aluminium front panel
  • fanless design

Applications

  • Display systems
  • Info terminals
  • self-service terminal
  • automation controller
  • embedded device dashboard
  • Input device for production lines
Productlink: https://www.icp-deutschland.de/en/industrial-pc/panel-pc-displays/panel-pc/industriell-p/p100-10as-n3350.html
Datasheet: https://files.icp-deutschland.de/produkte/KA015922/web/icp/P100-10AS-datasheet-20190409.pdf
