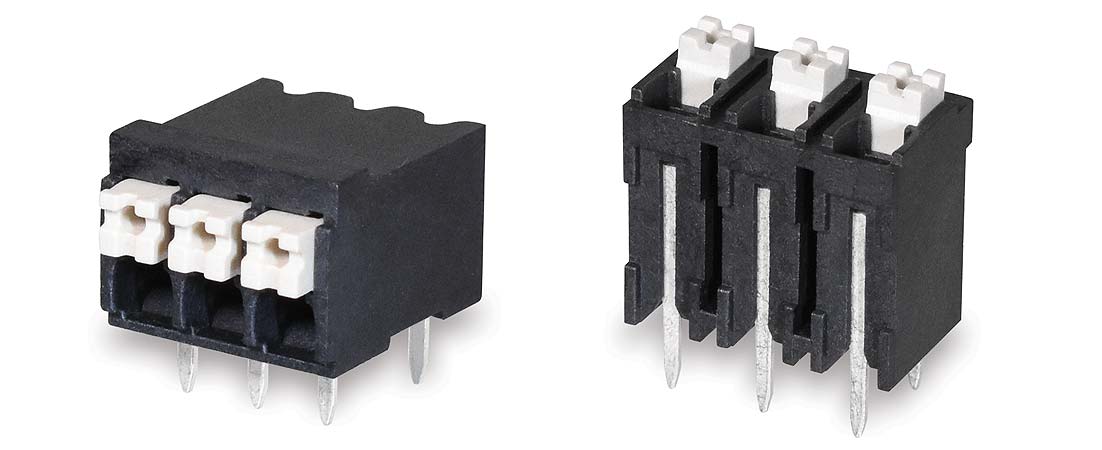

CUI Devices’ Interconnect Group (https://www.cuidevices.com/catalog/interconnect) today announced the addition of screwless terminal block connectors (https://www.cuidevices.com/catalog/interconnect/connectors/terminal-blocks) for high temperature applications. Featuring wide -40 to +130°C operating temperature ranges, the horizontal orientation TBLH10‑350 and TBLH10‑500 series as well as the vertical orientation TBLH10V‑350 and TBLH10V‑500 series provide designers with a rugged solution for any wire-to-board application dealing with extreme temperatures.
The four new series offer 2 to 24 pole counts, 3.5 mm or 5.00 mm pitches, and push button clamps for quick wire termination. Accommodating 24 to 16 AWG wires, these screwless terminal blocks carry 10 A UL current ratings, 300 Vdc UL voltage ratings, 17.5 A IEC current ratings, and 160 or 320 Vdc IEC voltage ratings. All models are also UL 1059 certified, IEC 60947-7-4 compliant, and hold the UL94V-0 flammability rating.
The TBLH series are available immediately with prices starting at $0.34 per unit at 1000 pieces through distribution. Please contact CUI Devices for OEM pricing. (https://www.cuidevices.com/contact)
Summary
Product name: TBLH10‑350, TBLH10V‑350, TBLH10‑500, TBLH10V‑500
Availability: Stock to 8 weeks
Possible users: Any wire-to-board application dealing with extreme temperatures
Primary features: High temperature operation up to 130°C, 2 to 24 pole count options
Cost: $0.34 per unit at 1000 pieces through distribution
View details for the TBLH10‑350 series: https://www.cuidevices.com/product/interconnect/connectors/terminal-blocks/tblh10-350-series
View details for the TBLH10V‑350 series: https://www.cuidevices.com/product/interconnect/connectors/terminal-blocks/tblh10v-350-series
View details for the TBLH10‑500 series: https://www.cuidevices.com/product/interconnect/connectors/terminal-blocks/tblh10-500-series
View details for the TBLH10V‑500 series: https://www.cuidevices.com/product/interconnect/connectors/terminal-blocks/tblh10v-500-series
