Implement IoT around the world even using 2G

by donpedro

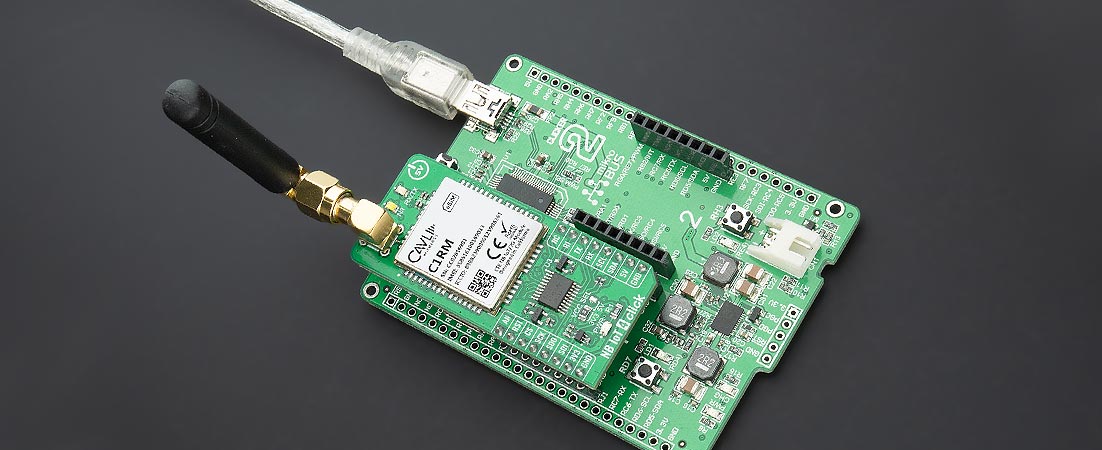

MikroElektronika (MIKROE), the embedded solutions company that saves development time and cost by providing innovative hardware and software products based on proven standards, has launched NB IoT 4 Click, a compact add-on board for IoT applications such as smart metering, intelligent wearables, security and asset tracking, home appliances, environmental monitoring and more. The new Click board includes a cellular wireless communications module with integrated digital SIM (eSIM) delivering global data connectivity even in regions without the latest communications infrastructure.

NB IoT 4 Click features the C1-RM from Cavli Wireless. This three-band NB-IoT IoT/2G wireless communication module supporting bands 3, 5, and 8 mainly targets low power data transmission applications. The module also supports the 3GPP Release 13 standard and meets almost all M2M requirements thanks to its ultra-small size. Devices have a standby power consumption of less than 1mA, and in deep sleep mode this can be as low as 5µA. External interfaces, protocol stacks and a complete range of SMS and data transmission services to meet client-side demands are provided.

Comments Nebojsa Matic, CEO at MIKROE: “This module is specially designed for countries with less than 100% NB-IoT coverage, enabling LPWAN deployments to be possible using 2G, and then switching to NB-IoT when the network is ready. The integrated eSIM feature ensures that the module can be deployed worldwide.”

NB IoT 4 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

MIKROE releases a new Click board nearly every day at 10am, and many leading microcontroller companies including Microchip, NXP, Infineon, Dialog, STM, Analog Devices Renesas and Toshiba now include the mikroBUS socket on their development boards. NB IoT 4 Click  costs just $55. For more information about MIKROE’s full range of over 1000 Click peripheral boards, visit www.mikroe.com/click.

MikroElektronika
