Broad Selection of White LEDs

by donpedro

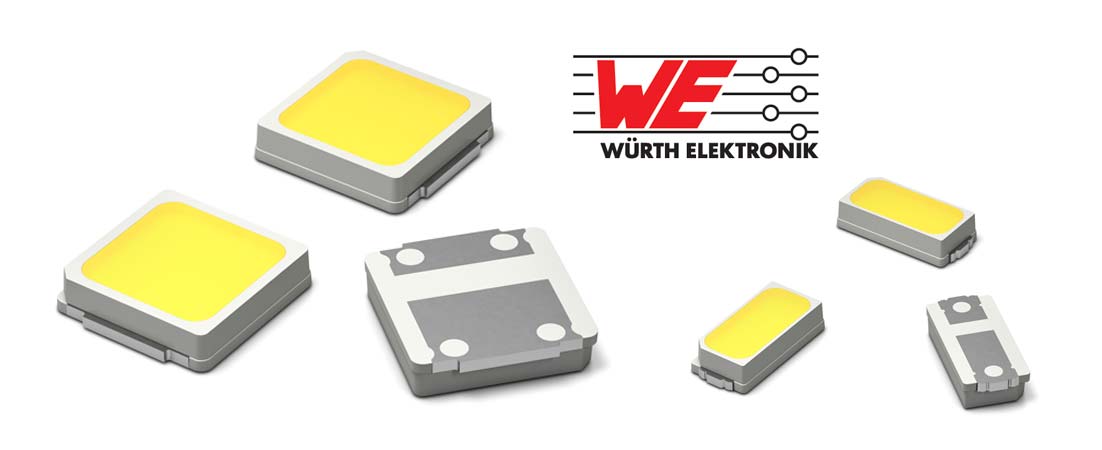

WL-SWTP SMT LED series in 3014 package — Image source: Würth Elektronik

Würth Elektronik has doubled its product range of SMT assembly white top view LEDs to 30 models. The 3014, 3030 and 5630 packages of the WL-SWTP product group have been expanded to include the “A series”. These new LEDs in PLCC packages feature the best possible lumen per watt ratio and MacAdam binning, thus achieving the maximum homogeneity in color perception.

WL-SWTP SMT LED series in 3030 package — Image source: Würth Elektronik

The A series (identified by an A at the end of the product code), as part of the WL-SWTP series, is one of the top LEDs available on the market with typical values from 175 lm/W. The long-life, slimline LEDs are suitable for many types of lamps, status displays, backlighting, industrial and consumer products for both indoor and outdoor use. They are characterized by a high color rendering index (CRI) and low energy consumption. The LEDs are available in five different color temperatures: Cool White (6000 K), Daylight (5000 K), Moonlight (4000 K), Warm White (3000 K) and Sunrise (2700 K).

WL-SWTP SMT LED series in 5630 package — Image source: Würth Elektronik

Using 3- and 5-step MacAdam binning, the ultimate color homogeneity can be achieved for each CCT group without compromising efficiency. Würth Elektronik provides developers with free samples. In addition, Würth Elektronik offers a design kit with free refilling, as well as demo boards for PLCC LEDs. Along with the entire product group, the highly efficient A series LEDs are now available from stock without minimum order quantities.

Würth Elektronik eiSos
