More performance thanks to new standard: The Intel® AX200-/ AX201 modules ensure smooth streaming of highresolution video, fewer dropped connections and faster connections, even at greater distances from the router or in dense environments. This is possible by implementing the new Wi-Fi 6 (802.11ax) standard with its features OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse. The Intel® Wi-Fi 6 portfolio is available at https://www.rutronik24.de.
The AX200 features a PCIe interface for Wi-Fi and a USB interface for Bluetooth 5. Bluetooth® 5.1 offers a range of 4x over Bluetooth® 4.2 with the same Tx performance, enabling ubiquitous availability. It also doubles the speed of data rates, thereby reducing overall power consumption. It also improves data transmission, enabling seamless location-based services and easier pairing of Bluetooth® devices. The AX201 CRF module created for use with Intel‘s proprietary interface (CNVio2), matches therefore only with certain Intel® chipsets and platforms.
Performance and security at the highest level
Using Wi-Fi 6 technology with 1024QAM and 160 MHz channels, Intel® Wi-Fi 6 modules can deliver nearly three times the peak data rates (up to 2.4 Gbps) and up to four times the capacity improvement in dense or congested environments compared to Wi-Fi 5 (IEEE 802.11ac). The new IEEE 802.11ax Wi-Fi standard uses orthogonal frequency division multiplexing (OFDMA) and MU-MIMO (Multi User Multiple Input, Multiple Output) to ensure communication between the access point and multiple devices. In addition to the improved performance, the new WPA3 features provide state-of-the-art authentication and military-grade encryption, creating a secure environment for sensitive data traffic.

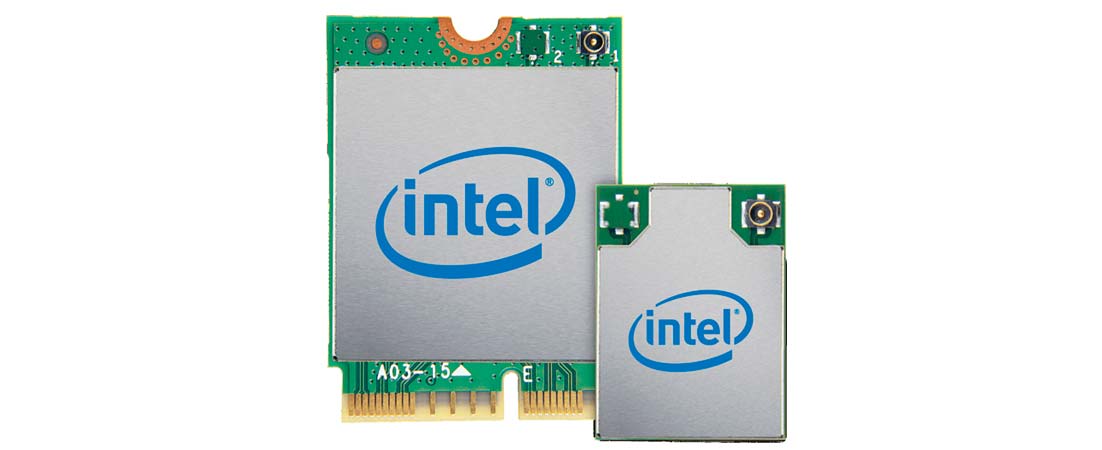

The M.2 2230 form factor modules are designed for flexible system configuration and platform usage by using a standard Key-A or Key-E socket. M.2 1216 modules, on the other hand, enable space-saving platform design.
For more information about Intel‘s new WiFi 6 modules and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
https://www.rutronik24.com/search-result/qs:ax200%20ax201
