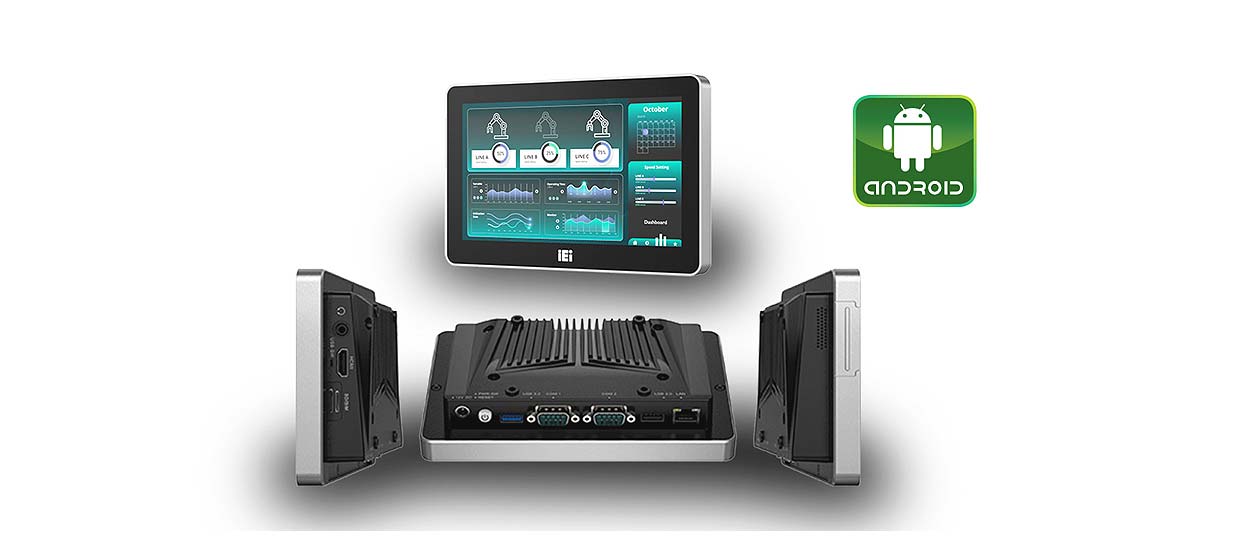

The AFL4 series is growing! The AFL4-W07-RK3566 is the first 7” model on the market to have a Rockchip System on Chip onboard instead of an x86/x64 processor. The AFL4-W07-RK3566 is available in three variants. The AFL4-W07-RK3566 with Debian 10 and the AFL4-W07-RK3566-A with Android 12 operating system are standard. Both variants are equipped with a Rockchip RK3566 four-core processor with up to 1.8GHz clock speed and 4GB onboard DDR4 RAM, which can be optionally increased to up to 8GB. Both variants are also equipped with 32GB eMMC memory. A slimmed-down version with 16GB eMMC memory and either 2GB, 4GB or 8GB RAM is available as an option.
The 16:9 7” display offers a resolution of 1024×600 pixels, 450 cd/m², a viewing angle of 170°/170° and a contrast of 800:1. The capacitive touch supports 10-finger operation, operation with gloves and wet hands and is protected against overhead light with anti-glare and anti-UV coating. The USB 3.0 Host Type A, USB 2.0 OTG Type A, GbE, two RS-232/422/485 interfaces and an HDMI output with up to 4K resolution are available as interfaces. There is also a micro card slot, a nano SIM slot and an M.2 slot for plug-in modules. With an input voltage of 12V DC, the Panel PC can be used in environments from 0°C to 50°C.
Fanless All-in-One PC with ARM architecture
Specifications
- 7” 16:9 All-in-One PC
- Rockchip RK3566 System on Chip
- Up to 4 GB LPDDR4x memory onboard
- Up to 32 GB eMMC Flash
- Fanless
- Narrow bezel
- PCAP display with 10-point multi-touch, anti-glare, anti-UV
- HDMI, USB 3.0, USB 2.0, Ethernet, RS-232/422/485
- Android or Debian operating system
Applications
- Visualization
- Panel PC
- Factory automation
- Retail trade
- Digital Signage
- POS
