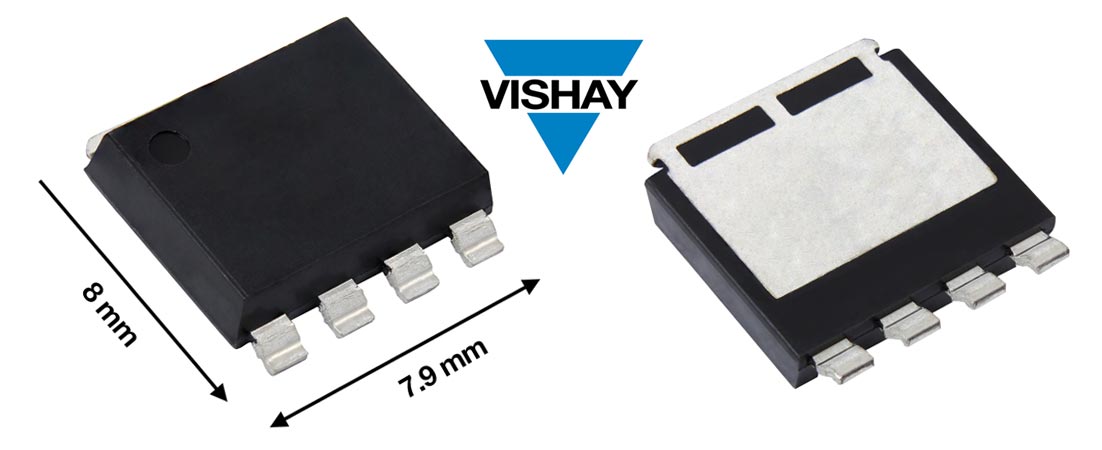

Vishay Intertechnology, Inc. (NYSE: VSH) today introduced two new n-channel TrenchFET® MOSFETs that increase power density, efficiency, and board-level reliability in telecom and industrial applications. To achieve these design goals, the 60 V SiJH600E and 80 V SiJH800E combine ultra low on-resistance with high temperature operation to +175 °C and high continuous drain current handling. Their space-saving PowerPAK® 8x8L package promotes board-level reliability with its bond wireless construction and gullwing leads for mechanical stress relief.
The ultra low on-resistance of the SiJH600E and SiJH800E — 0.65 mΩ and 1.22 mΩ typical at 10 V, respectively — is 54 % and 52 % lower than same-generation devices in the PowerPAK SO-8. This translates into energy savings by minimizing power losses due to conduction.
For increased power density, the SiJH600E and SiJH800E deliver continuous drain current of 373 A and 288 A, respectively, in a package that is 60 % smaller and 57 % thinner than the D²PAK. To save board space, each MOSFET can also be used in place of two PowerPAK SO-8 devices in parallel.
Device Specification Table:
| Part Number | VDS (V) | ID (A) | RDS(ON) @ 10 V (mΩ) | Rthjc (°C/W) |
| SiJH600E | 60 | 373 | 0.65 | 0.36 |
| SiJH800E | 80 | 288 | 1.22 | 0.36 |
With high temperature operation to +175 °C, the Vishay Siliconix devices released today provide ruggedness and reliability for synchronous rectification in power supplies, motor drive control, battery management, and power tool applications. Lead (Pb)-free, halogen-free, and RoHS-compliant, the devices are 100 % Rg and UIS tested.
Package Comparison Table:
| Package | Length (mm) | Width (mm) | Thickness (mm) | Dimension (LxW mm²) |
| PowerPAK 8x8L | 8.0 | 7.9 | 1.8 | 63.2 |
| D²PAK (TO-263) | 15.2 | 10 | 4.4 | 152 |
Samples of the SiJH600E and SiJH800E are available now. Information on production lead times and quantities is available from Vishay or our distribution partners.
