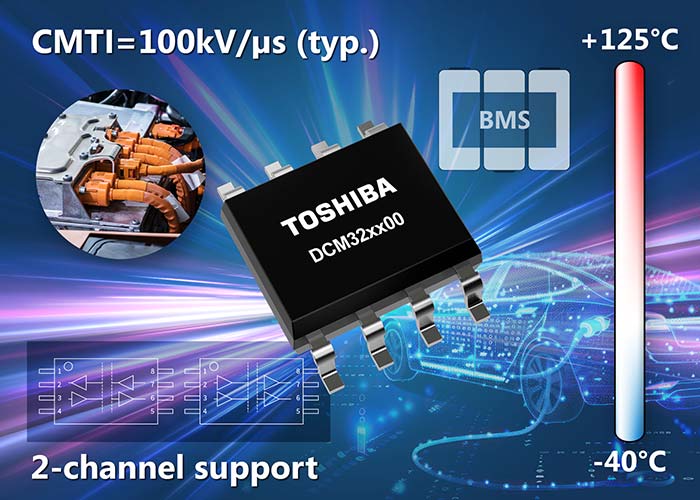

Toshiba introduces 2-channel automotive high-speed digital isolators – the new DCM32xx00 series
Toshiba Electronics Europe GmbH extends its lineup of isolation devices with four AEC-Q100 qualified, 2-channel, high-speed digital isolators: the new DCM32xx00 series. It supports stable operation with high common-mode transient immunity (CMTI) of 100kV/µs (typ.) at data transmission rates of 50Mbps (max.).
The devices ensure the safety and reliability of the on-board charger (OBC) and battery management system (BMS) used in hybrid electric vehicles (HEVs) and electric vehicles (EVs).
Key features
Leveraging Toshiba’s proprietary magnetic coupling technology, the DCM32xx00 series delivers a high CMTI of 100kV/µs (typ.) at supply voltages (VDD1=VDD2) from 3.0V to 5.0V with a common-mode voltage (VCM) of 1500V. The devices are resistant to common-mode electrical noise at the input and output nodes, delivering stable equipment control signals for reliable operation.
The 2-channel devices offer flexible configuration options: 2 forward-only channels and 1 forward and 1 reverse channel. They provide low pulse-width distortion of 0.8ns (typ.) and are suitable high speed communication applications such as I/O interfaces with control area network (CAN) communications.
The DCM32xx00 series of 2-channel digital isolators is available in the narrow 8-pin SOIC8-N package and offers stable operation between -40°C and +125°C. Toshiba will continue to expand the range of channels and packages for automotive and industrial equipment.
For more information about the DCM32xx00 series, please visit Toshiba’s website: DCM321C00 , DCM321D00 , DCM320C00 and DCM320D00
