SMT Grounding Solution

by donpedro

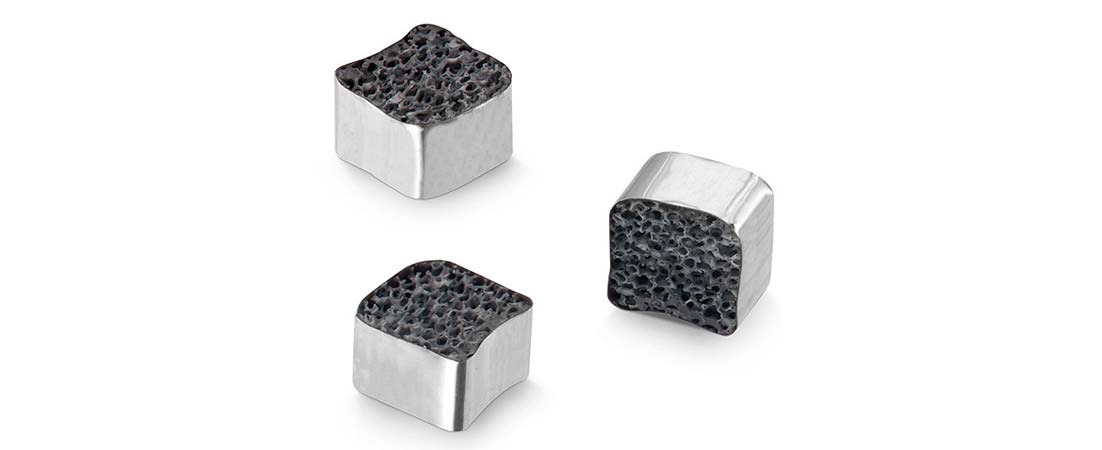

SMT solution for connecting grounding points: WE-SMGS—consisting of a temperature-resistant foam and tin-plated copper foil Image source: Würth Elektronik

With WE-SMGS, Würth Elektronik offers solderable seals for surface mounting. The WE-SMGS consists of a temperature resistant foam material, which combines the conductive seals with high elasticity. After compression, they then return to their original shape. The layer surrounding the heat-resistant foam is made of copper weave with tinning. It facilitates the soldering process in the reflow oven.

WE-SMGS can be used to establish contact between the PCB ground and metallic housing or other external metallic elements. It can also be used for low-resistance HF connections between the grounding points of two superimposed PCBs. These elements are designed for the pick-and-place/reflow process thus represent an alternative to WE-SECF contact fingers. WE-SMGS is available from stock in various heights from 2.5 to 15 mm. Würth Elektronik provides free samples on request.

Würth Elektronik eiSos
