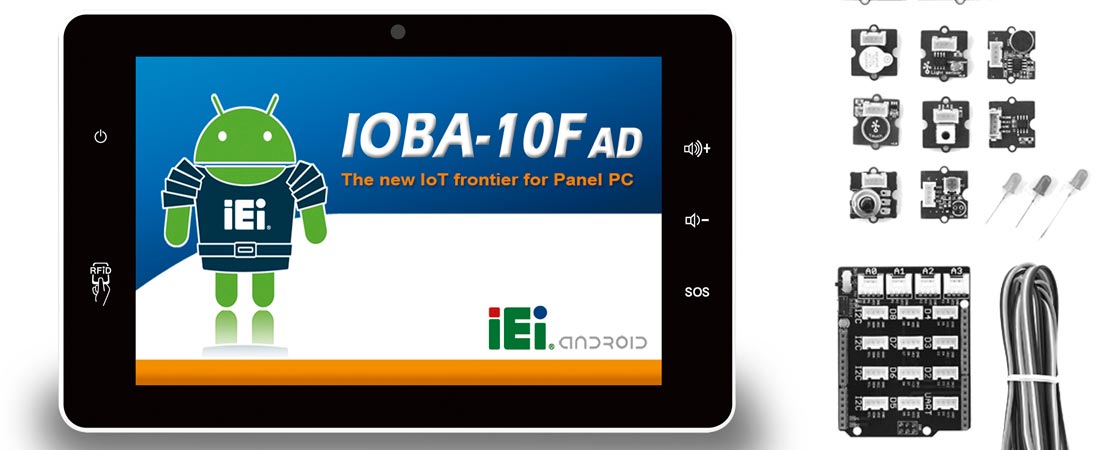

The new 10.1″ RISC based Panel PC IOBA-10F from ICP Deutschland is designed for wall mounting and offers versatile analogue and digital inputs for IoT sensors from Grove. The optional wall mount kit consists of a mounting bracket with wall box, which is attached to the back around the derived interfaces. This enables a seamless wall installation. Grove’s modular IoT sensors are connected to the IOBA-10F via three analogue and three I2C inputs. End users can rely on a large selection of sensors such as light, humidity or temperature sensors. For real-time wireless communication, four or six-pin digital I / O, two GbE LAN ports (1xPoE), integrated Wi-Fi, NFC and Bluetooth 4.0 are also available. In addition, the IOBA-10F offers one RS-232, two USB 2.0 interfaces and one four-pin RS-232/422/485 terminal block. Inside, a powerful FreescaleTM i.MX6 CortexTM-A9 CPU operates with 2GB of on-board DDR3 RAM. An 8GB eMMC NAND flash can be used for booting purposes. Externally, the IOBA-10F stands out due its modern design with slim housing dimensions (283x174x15mm) and its pre-installed Android user interface. Its industrial suitability is underpinned by a dust and splash-proof front (IP64), a scratch-resistant projected-capacitive touchscreen and an input voltage range of 9 ~ 30VDC. Upon customer request, ICP Deutschland also supplies the IOBA-10F without IoT sensor interface and as ready-to-use system with suitable storage media.
ICP Deutschland GmbH | www.icp-deutschland.de
