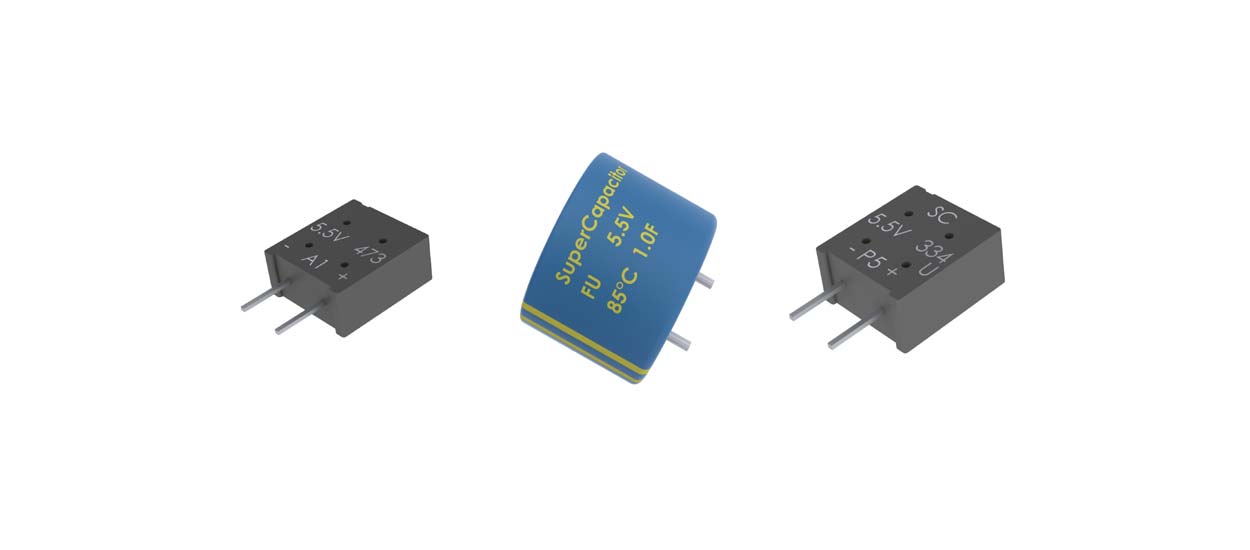

Rutronik expands its range of Supercapacitors for the automotive industry with the new automotive grade types FMD0H334ZF, FU0H105ZF, and FMU0H334ZF from KEMET. Optimized design and materials enable a long service life of up to 1,000 hours at 85 °C (FMD, FU) and 105 °C (FMU). The components also meet the special requirements of the THB test (85°C / 85 % r. H. / 1,000 h) for the automotive industry. Thanks to their characteristics, the components are ideal for memory backup and RTC support. They fulfill the requirements of AEC-Q200 and are produced in a TS16949 certified factory. The automotive grade Supercapacitors are available at www.rutronik24.com.
The new automotive grade Supercapacitors from KEMET ensure uninterrupted functionality, even if the main battery is replaced, there is a power failure or system error. A further contribution to reliable performance is made by the robust design, which makes the components particularly resistant to shocks and vibrations.
Key features at a glance:
FMD0H334ZF:
- Capacitance: 330 mF
- Temperature range from -40 °C to +85 °C
- Fulfills THB test (85 °C / 85 % r. H./ 1,000 h)
- 1,000 hours service life at max. 85 °C / 5.5 V
- Size: 15 mm x 14 mm x 9 mm
FU0H105ZF:
- Capacitance: 1,0 F
- Temperature range from -40 °C to +85 °C
- Fulfills THB test (85 °C / 85 % r. H./ 1,000 h)
- 4,000 hours service life at max. 85 °C / 5.5 V
- Size: Ø 21.5 mm, height 15 mm
FMU0H334ZF:
- Capacitance: 330 mF
- Temperature range from -40 °C to +105 °C
- Fulfills THB test (85 °C / 85 % r. H. / 1,000h)
- 1,000 hours service life at max. 105 °C / 5.5 V
- Size: 15 mm x 14 mm x 9 mm
Possible applications:
- ADAS
- RTC Backup
- Memory Backup
For more information about the automotive grade Supercapacitors from KEMET and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
