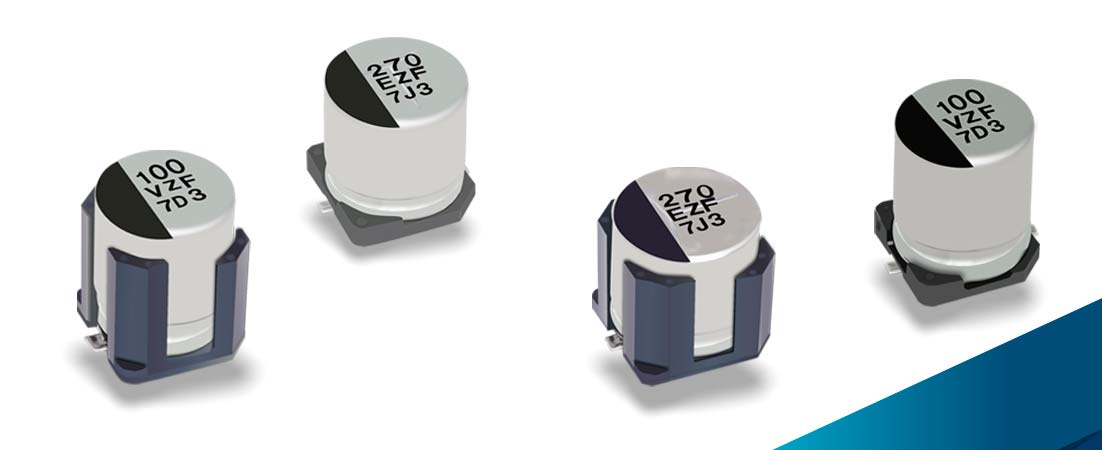

Panasonic Industry Europe has recently introduced the new surface-mount type ZF series of Conductive Polymer Hybrid Aluminum Electrolytic Capacitors. Being able to endure high temperatures of 150°C for up to 1.000 hours, the new capacitors benefit from a high withstand voltage of 25V to 63V and a low leakage current of (0.01 CV or 3µA). The nominal capacitance range is 33µF to 270µF.
The AEC-Q200 qualification of ZF series products ensures optimal quality and reliability and makes the parts ideal for demanding applications like AC/DC converters, DC link capacitor for servo motor inverter power supply in robotics, Actuator for Exhaust System, DC/DC converters in automotive transmission control units, DC link capacitor for motor inverter power supply in oil/water pumps or EPS units.
Vibration-proof variants of the ZF series capacitors are available for the entire voltage and capacitance range. The components are fully RoHS compliant.
Further information can be found here.
