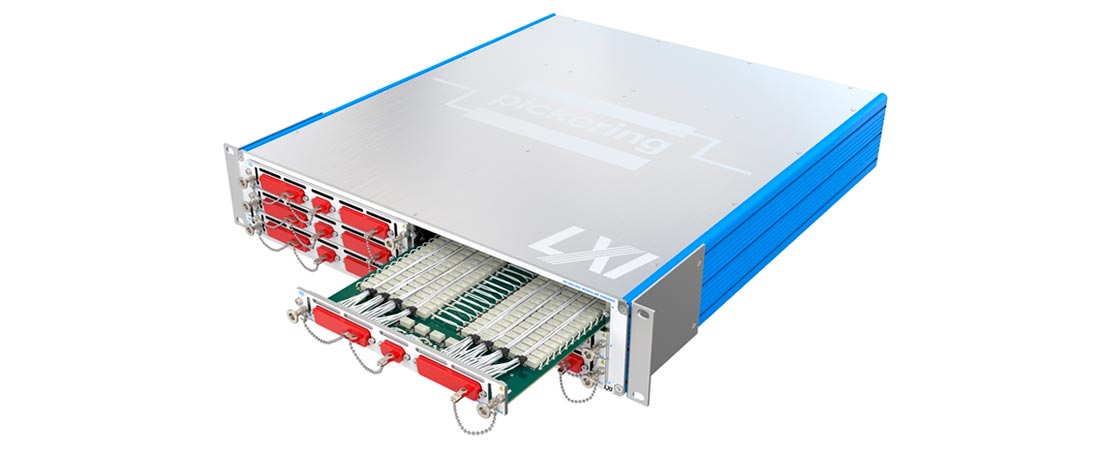

Pickering Interfaces, the leading supplier of modular signal switching and simulation solutions for use in electronic test and verification, today launched the 65-218, a 50×4, 1-pole LXI matrix plug-in modules. Used in conjunction with the 65-200-002 LXI modular chassis, these modules are part of a scalable, high voltage matrix platform that enables the construction of matrices of up to 300×4 in steps of 50×4. Available in two variants that are capable of delivering cold switching to 400 VDC or 750VDC (1kV pulse) up to 1A (switching) or 2A (carrying), the single-pole matrix modules use high-quality electromechanical relays offering a long service life.
The modular construction of the scalable LXI platform enables great flexibility—as your requirements evolve, additional plug-in modules can be easily added, and the control software automatically detects the new configuration. The plug-in matrices are loaded into the chassis via the front panel, significantly improving the unit’s ease of maintenance. The 400V version (model 65-218-101) can use the internal analog bus of the 65-200 chassis to connect the 50×4 matrix plug-ins forming a larger matrix. Front panel connector interfaces on all 65-218 plug-in modules are via high voltage nine and 50-pin D-type connectors.
The 65-200 platform offers built-in scan list sequence stores with triggering capability, both of which can be used to increase the efficiency of test systems by allowing pre-defined test sequences to be loaded onto the unit and executed automatically.
The design of the modules has been optimized to minimize path resistance to less than 200mR per plug-in path with a thermal offset of <4µV (typical).
Comments Steve Edwards, Pickering’s Switching Product Manager: “With a chassis height of just 2U, it is possible to create a scalable, high voltage switching solution using the 65-218 50×4 matrix modules while minimizing the area required in the test system cabinet. These high voltage solutions suit deployment in aerospace testing applications and are also applicable for other industries including automotive.”
Extensive accessory support is available, including Pickering’s diagnostic tools – Built-in Relay Self-Test (BIRST) and eBIRST Switching System Test – which provide a quick and straightforward way of finding relay failures within the modules. Like all Pickering’s products, these modules come with a three-year warranty. Pickering also offers a range of standard and custom interconnect accessories supporting the 65-218 modules.
