New at Mouser: Nexperia PESD1ETH10L-Q and PESD1ETH10LS-Q ESD Protection for Automotive and EV Applications
Mouser Electronics, Inc., the authorized global distributor with the newest electronic components and industrial automation products, is now shipping the new PESD1ETH10L-Q and PESD1ETH10LS-Q ESD (electro-static discharge) protection ICs from Nexperia. The PESD1ETH10L-Q and PESD1ETH10LS-Q ESD protection diodes comply with the OPEN Alliance requirements for use in 10BASE-T1S automotive Ethernet applications.
The Nexperia PESD1ETH10L-Q and PESD1ETH10LS-Q ESD protection devices, available from Mouser, are fully compliant with the OPEN Alliance IEEE 10BASE-T1s, 100BASE-T1, and 1000BASE-T1 standards, and offer ESD protection up to 18kV (IEC 61000-4-2) that can withstand up to 1000 contact discharges at 15kV, making the devices highly reliable for automotive applications. The Nexperia PESD1ETH10L-Q and PESD1ETH10LS-Q cover the full range of automotive board net voltages, including 12 V, typically found in cars; 24 V for trucks and larger commercial vehicles; and 48 V in hybrid and electric cars.
The PESD1ETH10L-Q and PESD1ETH10LS-Q also feature a high trigger voltage of 100V and exceptionally low capacitance (0.4 pF), making them ideal for protecting higher-speed applications deploying 100BASE-T1 or 1000BASE-T1 in-vehicle networks, which helps maintain signal integrity. These diodes offer a single-line ESD protection solution with up to 18 kV, according to IEC 61000-4-2, and up to 15 kV with 1000 discharges, as per OPEN Alliance.

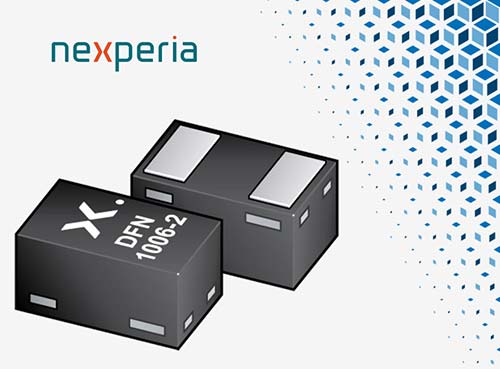

The PESD1ETH10L-Q ESD device is supplied in a compact DFN1006-2 (SOD882) package. The PESD1ETH10LS-Q is housed in a DFN1006BD-2 (SOD882BD) package with side-wettable flanks, enabling visual inspection of solder joints during automated optical inspection (AOI) and enhancing solder joint reliability.
