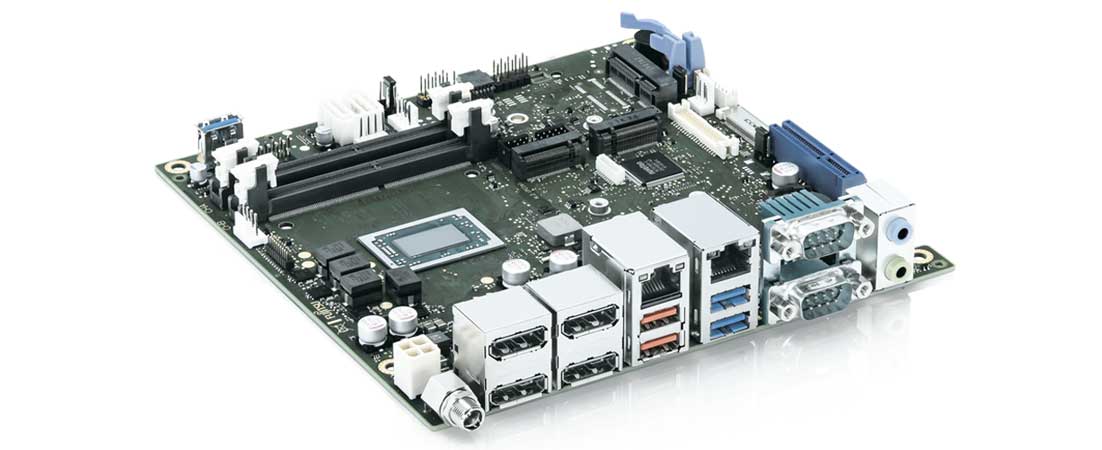

Kontron, a leading global provider of IoT/Embedded Computing Technology (ECT), will present the D3713-V/R mITX industrial motherboard based on the AMD Ryzen(TM) Embedded V1000 and R1000 line at this year’s embedded world tradeshow. It features the SoC integrated AMD Radeon(TM) Vega GPU with particularly brilliant graphics and supports up to four independent displays in 4K resolution via DisplayPorts, one Embedded DisplayPort and a dual-channel LVDS (24bit). With five different AMD processors, the board can be adapted for various graphics applications, e.g. for kiosk, infotainment, digital signage, professional casino gaming systems, as well as medical displays, thin clients and industrial PCs.
The Kontron D3713-V/R mITX motherboard is “Designed by Fujitsu” and manufactured in Germany. This guarantees short delivery times, highest manufacturing quality, competent technical support directly from Augsburg, as well as long-term repair service. Kontron also offers a “kitting” service, where motherboards are assembled ‘ex factory’ with the requested processors, memory latches and even an individual BIOS.
For the D3713-V/R mITX motherboard, the Kontron SMARTCASE(TM) S711 is also currently in preparation. It offers a customer-specific configured and certified system solution consisting of the board, CPU, memory, expansion cards, BIOS, cooling and housing.
The D3713-V/R mITX motherboard optionally offers different processors of the AMD Ryzen(TM) Embedded V1000 and R1000 line: AMD Embedded SoC V1202B, V1605B, V1807B, R1305G or R1606G. Due to the Intel® i210LM Ethernet Controller with 10/100/1000 MBit/s the board supports protocols such as EtherCAT or TSN. Furthermore it offers 2x SO DIMM sockets for up to 32GB memory. The use of a data carrier or extensions is possible via 2x Serial ATA III 600 interfaces (up to 6GBit/s), a Mini PCIe (halfsize/fullsize), a PCI Express® x4 Gen3, an M.2 PCIe x2 Key-M and an M.2 PCIe x4 Key B. It also offers various interfaces, such as USB 3.1 Gen1/Gen2, USB 2.0, serial I/O, GPIO and High Definition Audio Input/Output via the Realtek ALC256 chip codec. The board contains an AMI Aptio 5.x (UEFI) BIOS, a HW Watchdog, a BIOS integrated HW Diagnostic Tool, AMD integrated TPM V2.0 onboard, and a socket for an optional TPM module.
