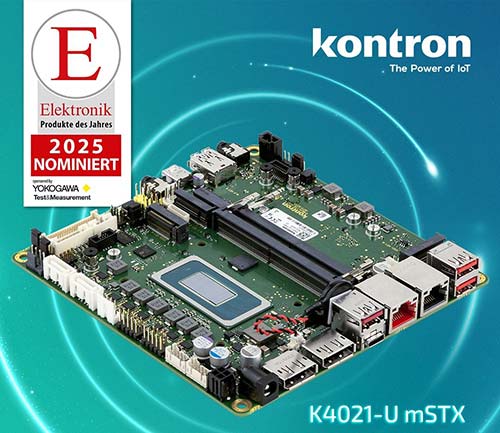

For compute-intensive, AI-supported applications: Kontron’s K4021-U mSTX
Nominated by the trade magazine Elektronik for the “Product of the Year” 2025, the K4021-U mSTX motherboard from Kontron scores with the latest DDR5 memory technology, Intel® graphics and a new integrated NPU for dedicated AI acceleration. The motherboard, which is available from Rutronik, supports up to four 4K60 HDR displays or two 8K displays simultaneously. The platform thus represents a significant advance in embedded computing technology and meets the requirements for the most demanding AI, industrial and medical applications. The K4021-U mSTX can be ordered at www.rutronik24.com. When volume production begins in 2025, a matching SMARTCASE™ chassis kit solution will also be available. In addition, suitable cooling solutions, memory modules and high-performance SSDs for the motherboard are also available from Rutronik.
The compact, flat and versatile design is ideal for applications with limited space and a good alternative to 3.5-inch or NUCs. The energy-efficient design, wireless installation, easy maintenance and flexible expandability make the K4021-U mSTX a particularly cost-effective solution.
The platform was developed for 24/7 continuous operation and is designed for operating temperatures from 0°C to +60°C. The use of high-quality components and strict lifecycle management also ensure high quality and long-term, reliable use.
Robust connectivity and excellent expandability
Designed with expandability in mind, the K4021-U mSTX motherboard features four M.2 slots for storage and Wi-Fi modules, as well as numerous connection options, including two COM ports, Thunderbolt 4, USB 3.2 Gen2, and GPIO. This allows the board to be customized for a wide range of industrial applications.
Cutting-edge performance thanks to Intel® Core™ Ultra processors
Performance and efficiency are based on the latest Intel® Core™ Ultra 7 and 5 processors, which are part of the Meteor Lake U SoC family. The integrated Neural Processing Unit (NPU) extends AI capabilities and enables a 20x optimization of performance-per-watt. This makes it ideal for image recognition or automation applications.
Main features:
- Latest DDR5 memory technology (DDR5-5600, max. capacity 96 GB)
- Intel Graphics® – within the SoC powered by Intel Xe-Architecture®
- Up to four simultaneous 4K60 HDR displays or two 8K displays
- Dual-channel LVDS (24-bit) and eDP V1.4b (4K) onboard
- COM ports, Thunderbolt 4, USB 3.2 Gen2, GPIO
- Operating temperature range from 0 °C to +60 °C
- Suitable for 24/7 continuous operation
Application examples:
- POS/POI
- Production optimization
- Medical
- Digital signage
- Kiosk solutions
Further information can be found in the corresponding Rutronik TEC article.
For more information from the K4021-U mSTX from Kontron and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
