Deutschmann Automation Presents Embedded Solution for Fast Communication via EtherCAT

by donpedro

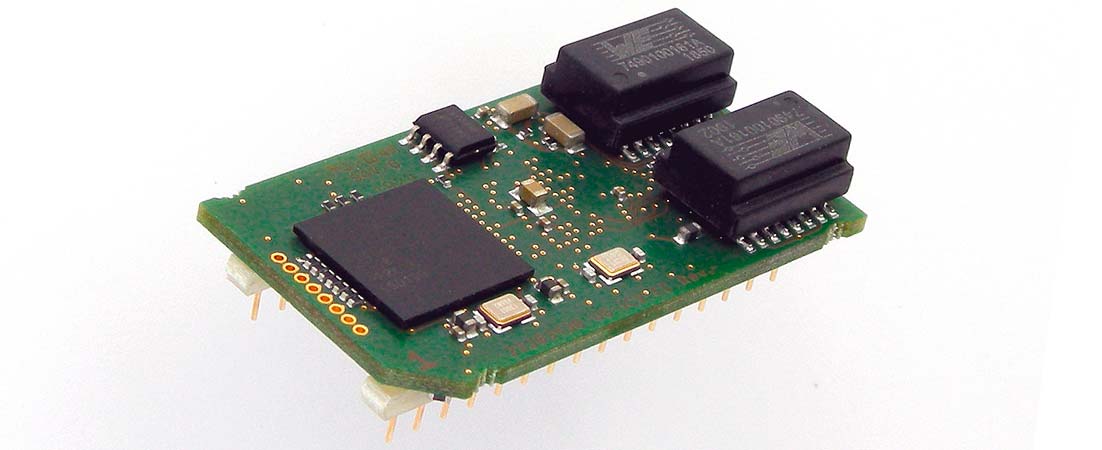

Deutschmann Automation, the specialist for industrial data communication, has expanded its powerful UNIGATE IC2 series and presents the new embedded solution UNIGATE IC2 EtherCAT at embedded world 2020 in Hall 2, Booth 241. UNIGATE IC2 EtherCAT meets the strong demand from industry for a ready-to-use EtherCAT interface, which can be installed directly into a terminal device or sensor system. The integrated ARM Cortex-M4 processor ensures fast communication.

With the embedded solution UNIGATE IC2 EtherCAT, data can be processed at high speed and quickly be transferred to the customer’s application. The UART interface achieves baud rates of up to 7.5 MBaud. The SPI bus allows a transfer rate of 12 Mbit/s in master operation and 10 Mbit/s in slave operation. In addition, the all-in-one bus nodes support CANopen over EtherCAT (CoE).

The protocol connection between the UNIGATE IC2 module and the terminal device is implemented via a proprietary script, which is created in the script language developed by Deutschmann Automation in house. For programming the script, Deutschmann provides the free Protocol Developer tool. Execution time of a script line is about 10 µs. With the UNIGATE IC2 embedded series, the script execution time can be reduced by a factor of 50 to 80, compared to predecessor models from Deutschmann Automation’s proven UNIGATE IC series. Simple scripts can be executed in just a few microseconds.

Deutschmann Automation’s compatible embedded series UNIGATE IC and UNIGATE IC2 offer a wide range of different fieldbus and Industrial Ethernet communication modules, which are developed and manufactured in Germany. Furthermore, Deutschmann Automation supplies different fieldbus and Industrial Ethernet gateways and protocol converters for network-compatible systems. Implementation of the ready-to-use communication modules can significantly optimize design times and time-to-market of an end product.

Deutschmann Automation
