Vishay Intertechnology IHCM Common Mode Choke Offers Low Profile, High Shock and Vibration Resistance for 35 A Commercial Applications

by donpedro

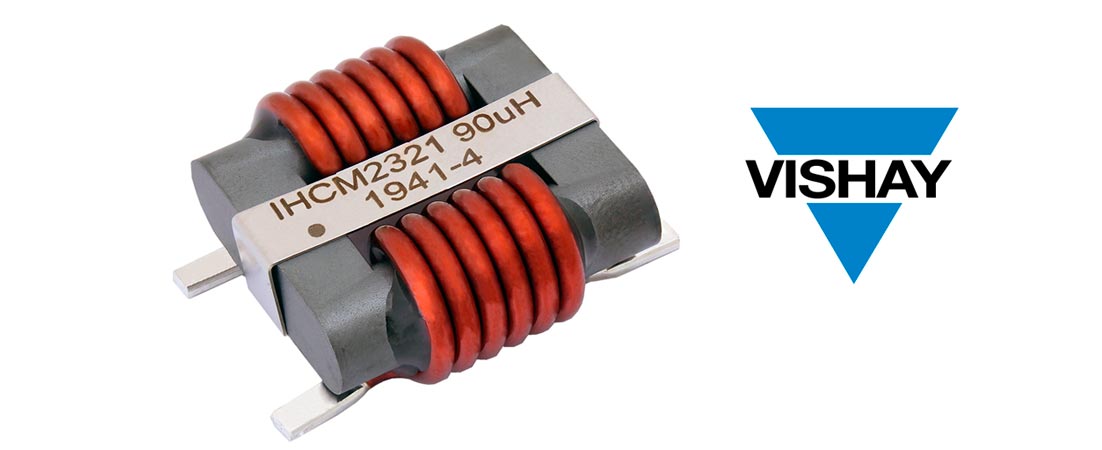

Vishay Intertechnology, Inc. (NYSE: VSH) today introduced a new IHCM common mode choke for high current commercial applications to 35 A. Available with a low profile surface-mount construction, the Vishay Custom Magnetics IHCM-2321AA-10 is more robust than bulky toroid-based devices and delivers superior performance across temperature ranges to +155 °C.

With its low profile, the IHCM-2321AA-10 offers a reduced size and volume, making it more resistant to shock and vibration, while the enhanced core design extends current saturation out to as much as 35 A. The IHCM-2321AA-10 is surface-mountable and compatible with automated pick and place assembly for increased flexibility in board layouts.

Along with excellent saturation characteristics, low DCR losses, and a 1500 VDC dielectric withstand voltage between coils, the IHCM-2321AA-10 is ideal for commercial-grade DC/DC converters, EMI filters, and high current filters for noise suppression in motor control and other circuity in industrial and telecom applications.

In addition to the standard surface-mount configuration, the IHCM-2321AA-10 offers customizable inductance, impedance, DCR, and current ratings, along with through-hole mounting options. The device is RoHS-compliant, halogen-free, and Vishay Green.

Device Specification Table:

Part number IHCM-2321AA-10
Inductance 90 µH to 480 µH
Common mode impedance (typ.) 380 Ω to 1200 Ω
DC resistance (max.) 0.0015 Ω to 0.0125 Ω
Heat rating current (typ.)(¹) 8 ADC to 31 ADC
Saturation current (typ.)(²) 13 ADC to 35 ADC
Leakage (max.) 2.5 µH to 14.0 µH

(¹) DC current (A) that will cause an approximate ΔT of 40 °C
(²) DC current (A) that will cause L0 to drop approximately 20 %
Samples and production quantities of the new inductor are available now, with lead times of 12 weeks.

Vishay Intertechnology
