Simply retrofit LVDS

by gabi

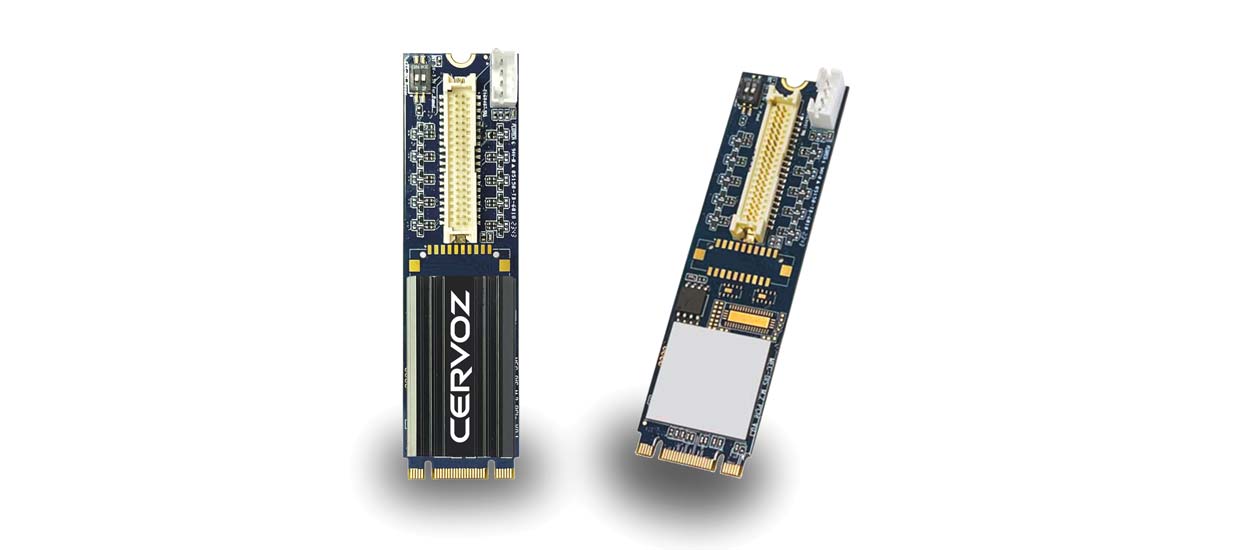

The MEC-DIS-271L from ICP Germany is a graphics card for industrial PCs with an M.2 slot that require an additional LVDS connection. The MEC-DIS-271L offers a single or dual channel LVDS connection with 24 or 48 bit and a resolution of 1920×1080 pixels on the M.2 form factor 2280. The SMI768 graphics unit with 256MB graphics memory is compatible with Windows and Linux operating systems. Displays with 3.3 or 5 volts can be operated on the module. With a power consumption of 2.8 watts and a temperature range of 0 °C to 70 °C or -40 °C to +85 °C in the Wide Temp version, which is also available, the MEC-DIS-271L underlines its industrial suitability.

Industrial M.2 2280 PCIe LVDS module


  • Dual-Lane (x2) PCI-Express with 5.0/2.5 GT/s bandwidth
  • PCI-Express Rev.2.0 support
  • 24 or 48 bit LVDS Channel
  • 256MB DDR3 memory
  • 128-bit graphics unit
  • Resolution up to 1920×1080@60Hz
  • 3.3V or 5V display voltage selectable via switch


  • Industrial PC
  • Panel PC
  • Embedded PC
