Rutronik offers USB Type-C connectors from Molex for industrial and consumer applications

For high-speed data and reliable power supply

by gabi

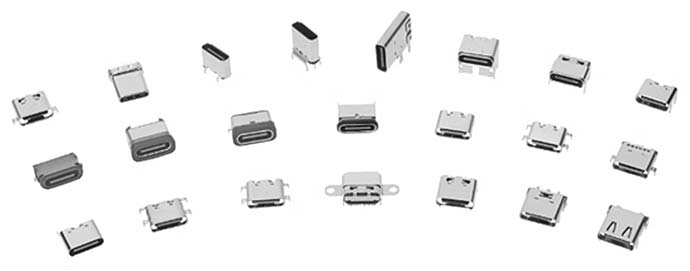

USB Type-C connectors

Rutronik offers USB Type-C connectors from Molex for industrial and consumer applications

With USB Type-C connectors from Molex, Rutronik offers future-proof interface solutions for industrial and consumer electronics applications. The connectors support data rates of up to 40 Gbit/s (USB4), currents of up to 5.0 A and power delivery of up to 100 W – ideal for applications with high power requirements and limited space, such as portable medical devices, industrial electronics, AR / VR systems and smart home appliances. The Molex connector portfolio is available at www.rutronik24.com.

Thanks to their compact design, IPX8-certified variants and high mechanical robustness (up to 10,000 mating cycles), the components are particularly suitable for applications where reliability and continuous operation are key. Various mounting options – including vertical, top and mid-mount versions – offer maximum design flexibility in a small space.

Benefits at a glance:
  • USB4-compatible: data transfer rates up to 40 Gbit / s
  • Power delivery capable: Up to 100 W charging power (5.0 A / 20 V)
  • Metal-reinforced mating area for high mating cycles (up to 10,000 mating cycles)
  • Mating force on PCB: 0
  • Mating force: 5 to 20 N
  • Unmating force: 8 to 20 N (1 to 30 cycles); 6 to 20 N (after 10,000 cycles)
  • Sockets with liquid protection according to IPX8, thanks to LSR moulding (liquid silicone rubber) ·
  • Variants with 6, 14, 16 or 24 contacts available
Overview of electric specifications:
Feature Value Applies to item numbers
Voltage max. 30 V (DC/AC) All
Current max. 3,0 A 217175, 217176, 217177, 217178
5,0 A 105450, 105455, 201267, 105444, 204711, 213083, 213716, 216989, 216990, 217179, 217180, 217182, 217183, 217184, 217804, 203615
6,0 A 202410
Contact Resistance (max.): 40 mΩ (initial); 50 mΩ after test 105450, 105454, 105455, 201267, 105444, 204711, 213083, 217804, 203615
40 mΩ (initial); 10 mΩ after test 202410
30 mΩ (initial); 10 mΩ after test 213716
Dielectric Withstanding Voltage 100 V AC 105450, 105454, 105455, 201267, 105444, 204711, 213083, 213716, 217804, 203615
500 V AC 202410
Insulation Resistance (min.): 100 MΩ 105450, 105454, 105455, 201267, 105444, 204711, 213083, 213716, 217804, 203615
1000 MΩ (initial); 100 MΩ after environmental test 202410
Application examples:
  • Portable medical devices (e.g. glucose meters, inhalers)
  • Smart home and (I)IoT components
  • AR/VR end devices and wearables
  • Industrial electronics, measuring and testing devices
  • Cash register systems and projectors

For more information to the USB Type-C connectors from Molex and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
