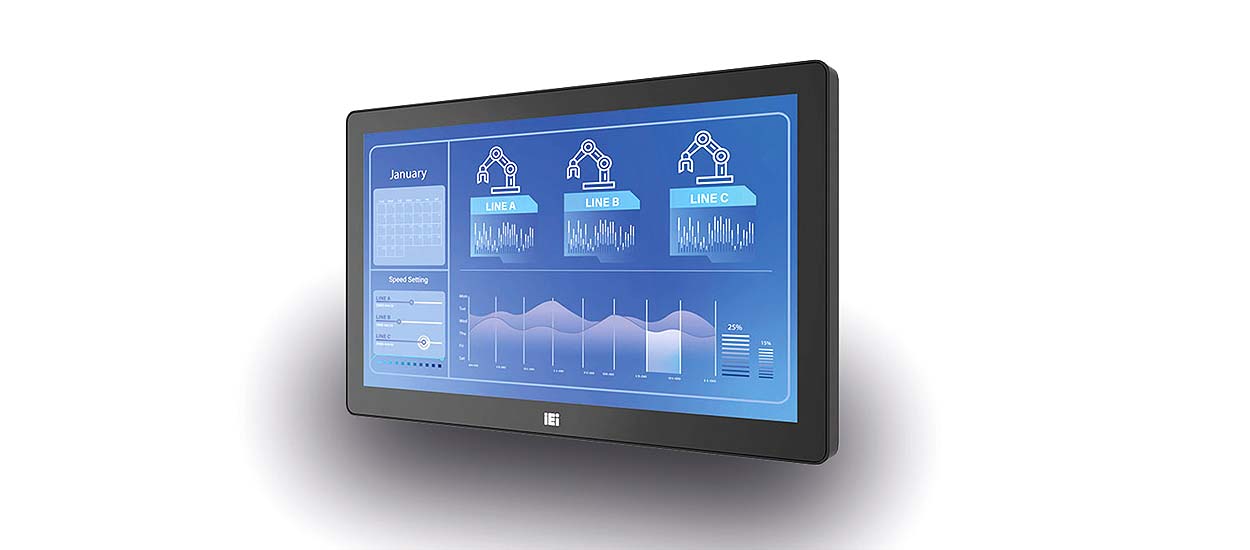

The new PPC2-CW133-EHL from ICP Germany is compact and versatile. Compact with a size of only 328x204x62 mm. Versatile thanks to the 13.3” display, which impresses with its resolution of 1920 x 1080 pixels.
With a brightness of 350 cm/m², a viewing angle of 176°/176° and a contrast ratio of 1000:1, it is ideal for industrial applications. The PCAP touch screen has been adjusted to support wet and gloved operation in addition to normal use. It also has an anti-reflective coating and UV protection for improved use in overhead lighting.
At its heart, the Intel® Celeron® processor J6412 delivers good processor performance with a maximum turbo frequency of up to 2.6 GHz. Despite four processor cores, the power dissipation is only 10 watts, resulting in a total consumption of the Panel PC of just 21 watts. Equipped with 8GB DDR4 memory, the PPC2 offers sufficient memory for the operating system and applications. Storage media can be installed in the M.2 2242 slot with M Key. There is also an HDMI output, dual 2.5 GbE, two USB 3.2 Gen2 (10Gb/s), four USB 2.0 ports, one RS-232/422/485 and three RS-232 interfaces for connecting additional peripherals. The PPC2-CW133 can be operated with 12 to 24 VDC voltage in a temperature range of -10°C to 50°C. On request, ICP Germany can supply the PPC2-CW133 as a ready-to-use system with an industrial storage medium and operating system.
Specifications
- 13.3” display with 1920×1080 resolution
- Intel® Celeron® J6412 processor
- 8GB DDR4 Dual-Channel Low Profile memory
- HDMI, USB3.2, USB, RS-232/422/485
- 2x 2.5 GbE
- 10-point touchscreen with anti-reflective coating and UV protection
- Wet and glove touch operation
- M.2 2242 M Key, M.2 2280 M Key, M.2 2230 E Key Slot
Applications
- Automation
- HMI operating systems
- Building automation
- KIOSK systems
- Infotainment systems
- POS SYSTEMS
- Display systems
- Info terminals
- Self-Service Terminal
- Automation Controller
- Embedded Device Dashboard
- Input device for production lines
