Mouser Now Stocking New TDK FS160x µPOL DC-DC Converters for AI, IoT, 5G, and Big Data Applications

by gabi

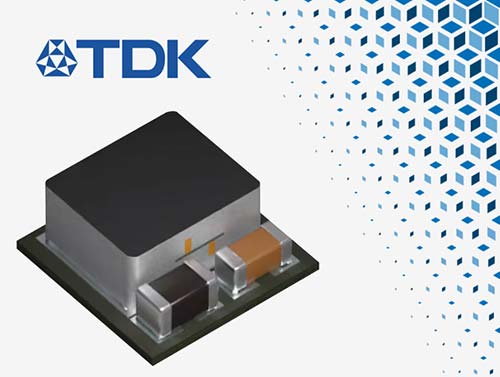

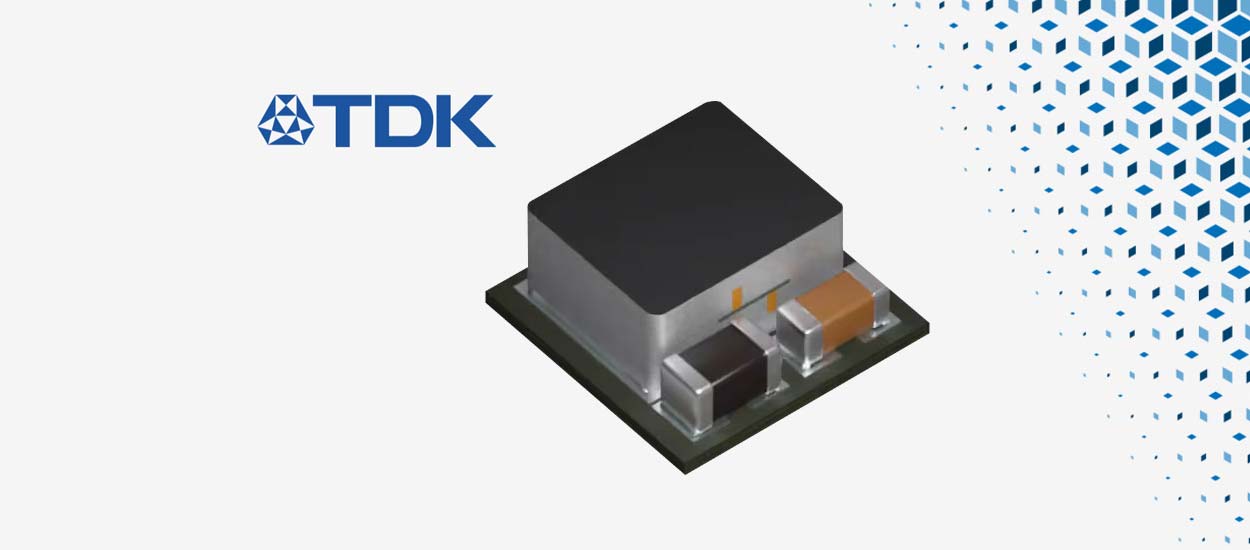

TDK FS160x µPOL

Mouser Now Stocking New TDK FS160x µPOL DC-DC Converters for AI, IoT, 5G, and Big Data Applications

Mouser Electronics, Inc., the authorized global distributor with the newest electronic components and industrial automation products, is now shipping the new FS160x µPOL™ DC-DC converters from TDK. The FS160x µPOL DC-DC converters feature full telemetry and increased performance in a compact, power-dense package. These converters are ideal for big data, artificial intelligence (AI), 5G cells, and IoT.

Features

The FS160x µPOL DC-DC converters, available from Mouser, are easy to integrate and offer a wide input voltage range of 4.2V to 16V and three continuous load capacities: 3A, 4A, and 6A. The FS160x µPOL low-profile package (3.3 × 3.3 × 1.35 mm) is suitable for automated assembly using standard surface-mount equipment and features an on-chip pulse-width modulation (PWM) controller and integrated MOSFETs, with an incorporated inductor and capacitors, creating an extremely compact and accurate regulator.

The FS160x µPOLs device’s built-in protections include pre-biased start-up, overvoltage protection, soft-start protection, thermal shutdown with auto-recovery, and thermally compensated overcurrent protection with hiccup mode. The TDK FS160x µPOL DC-DC converters feature full telemetry for high power-density applications with optimized construction that delivers extraordinary power density in surprisingly small modules, with a wide operating range from -40 °C to 125 °C.

Mouser also stocks the TDK EV1603-5000-A evaluation boards, which provide a demonstration and development platform for the FS160x µPOL DC-DC converters. The evaluation boards provide an example application circuit, allowing rapid prototyping when incorporated into existing designs.
