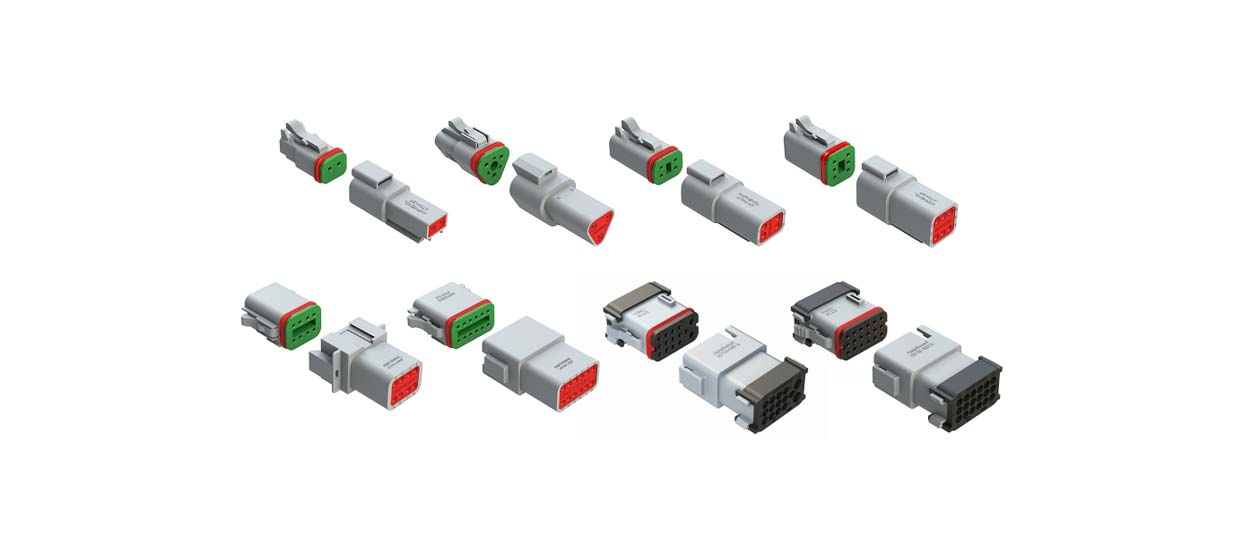

With the AT Series™ from Amphenol, Rutronik is further expanding its connector portfolio. These heavy-duty, waterproof connectors are available in different form factors as well as BoardLock™, StructurePlus™, LED, HYPERBUSS™, and PanelMate™ options. They are a cost-effective choice and have been developed to be compatible with all other existing standard products industrywide. Designed to IP68/69K when mated, they are ideal for use in marine, agricultural, alternative energy, heavy-duty or transportation applications. The connectors are available with 2, 3, 4, 6, 8, 12, 13 (mixed), 15 (mixed) and 18 positions at www.rutronik24.com.
The AT SeriesTM connectors have UV-resistant thermoplastic housings with integrated locking mechanism and high-temperature silicone seals. This ensures a particularly stable connection and sealing against environmental influences. Wedgelocks also ensure correct contact alignment and retention.
The multi-pin connectors are designed for use with size 16 contacts with 14 – 22 AWG. With over 100 mating cycles, they are also a durable option. As a stock item, the series is available from Rutronik permanently and cost-effectively.
Features at a glance:
- 14 – 22 AWG or 10 – 14 AWG (Pos. Mixed 13 and 15)
- Max. Rated current 13 A or 25 A (pos. Mixed 13 and 15)
- Thermoplastic housing
- High-temperature silicone seals
- Wedgelocks
- Compatible with existing standard products industry-wide
Examples of possible applications:
- Automotive industry
- Shipping
- Heavy-duty
- Agriculture
- Alternative energies
For more information to the AT Series™ from Amphenol and a direct ordering option, please visit our e-commerce platform at www.rutronik24.com.
