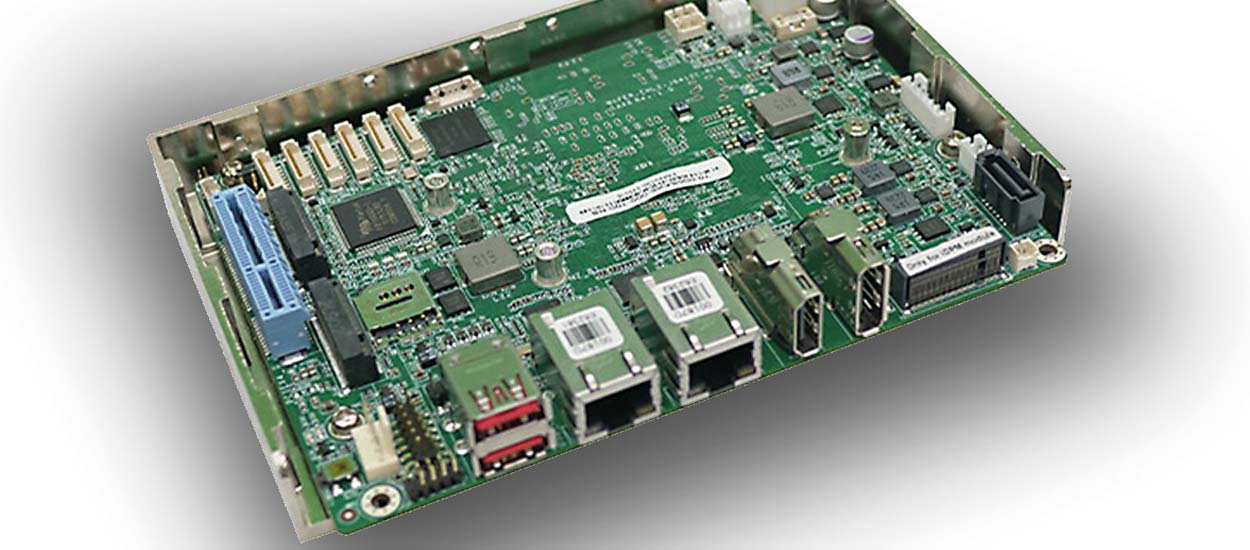

Expandable 3.5″ board with three independent display connections

by gabi

The Wafer-EHL2 is another 3.5″ board from ICP Germany’s portfolio of embedded boards. The mainboard is equipped with a cooling shell to simplify the heat dissipation of the installed components. The Wafer-EHL2 is available with Intel® Elkhart Lake Atom®, Pentium® and Celeron® processors. The basic version is equipped with Celeron® J6412. This processor has four cores and four threads. The base clock frequency is 2.0GHz, the maximum clock frequency is 2.6GHz.

8GB DDR4 RAM is pre-installed. The mainboard can be optionally upgraded with 16GB. Three independent connections are available for the graphics output. One HDMI port, one display port and one iDPM port. Two Intel® I225V 2.5GbE network controllers are installed on the board for network connectivity and applications with high data throughput. The Wafer-EHL2 can be expanded via an M.2 2230 A key, an M.2 23042/2242 B key, a SATA 6Gb/s interface and a PCIe x4 slot. This allows Bluetooth, WiFi, 5G modules, riser cards, NVME memory and other add-ons to be installed. The Wafer-EHL2 also offers two USB 3.2 ports. Four USB 2.0 and two COM interfaces are installed internally.

With a voltage input of 12V, the Wafer-EHL2 can be used in environments from 0°C ~ 60°C. On request, ICP can supply the board with suitable industrial RAM and solid state memory.

3.5″ embedded board with Elkhart Lake processor

Specifications

  • 3.5″ board with Intel® Atom® x6000 / Pentium® / Celeron® CPU
  • 8GB LPDDR4 memory (optional 16GB)
  • Triple independent display outputs
  • 1x HDMI, 1x display port, 1x iDPM
  • Two 2.5 GbE Intel® I225V controllers
  • Two USB 3.2, four internal USB 2.0, two internal COM interfaces
  • SATA 6Gb/s interface
  • Extensions: one M.2 2230 A key, one M.2 23042/2242 B key
  • One PCIe Gen3 x4 slot

Applications

  • IoT
  • Machine builder
  • Machine builders
  • Display systems
  • Ultra-flat embedded systems
  • Point of sale applications

ICP Deutschland
