The high performance features of the U9 Flash Memory Controller coupled with Hyperstone’s API (Application Programming Interface) have allowed Biolog Devices’ design to become a truly unique USB stick. It can be used across a range of embedded storage applications where security precautions are a must.
Hyperstone’s API permits the addition of proprietary firmware extensions to the existing firmware. This enabled Biolog Device to integrate their proprietary fingerprint sensor, thus enabling extra authentication and encryption to further protect data as it is passed through the controller onto the flash. Hyperstone´s U9 is employed to manage the flow of both biometric and user data stored inside the USB stick. The firmware extensions developed by Biolog Device using Hyperstone’s API ensure the fast recognition speed of fingerprints, while retaining excellent read and write performance of data to and from the flash memory.
Biolog Device´s BFU100A is fully compliant with USB 3.1 and boasts SuperSpeed performances guaranteeing maximum performance with secure data processing. Hyperstone´s U9 controller also offers a comprehensive compatibility across a wide range of NAND flash memories. In this instance, Biolog Device has chosen a MLC flash to safely store data.
Due to its low power-consumption, meticulous encryption software and capacity to efficiently store multiple authentication codes, the BFU100A is ideally suited for applications where secure data storage is imperative.

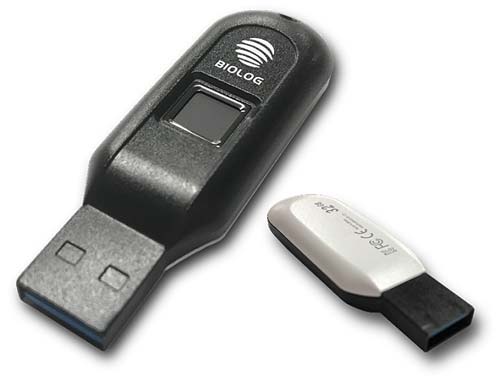

Hyperstone´s USB 3.1 Flash Memory Controller the U9 is inside Biolog Device´s secure fingerprint USB Stick.
Flash Memory Controllers and API
The complete range of Hyperstone’s flash memory controllers with application and flash-specific firmware represents a unique platform for industrial high endurance flash memory storage devices. Support is available for a range of host interfaces, including CompactFlash (CF), SecureDigital (SD), eMMC, SATA, and USB. Together with Hyperstone’s proprietary hyReliability™ firmware, all controllers provide enhanced endurance and data retention management as well as rigorous fail-safe features, all of which are mandatory for industrial embedded applications. Implemented hardware features and special firmware developments enable the highest data retention and refresh mechanisms, even when storage applications are faced with extreme environmental conditions. The integrated AES enables high performance data encryption on-the-fly. A unique ID is available for security applications. Biolog Device uses Hyperstone’s flash controller security features. The Hyperstone API enables the implementation of unique features and firmware extension, while full ownership of the developed code stays with Biolog Device.
